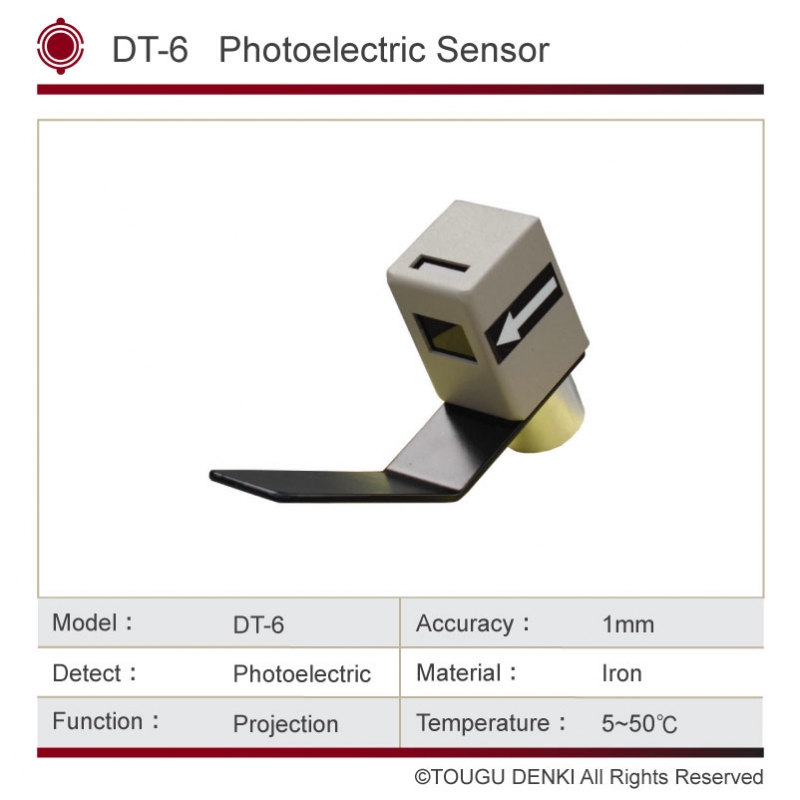

1. Photoelectric edge guide sensor detects by projection, easy to use without setting, accuracy 1mm.
2. Detects any material : clear and opaque materials, reflective steel, meshes, nonwoven, clothes,…etc.

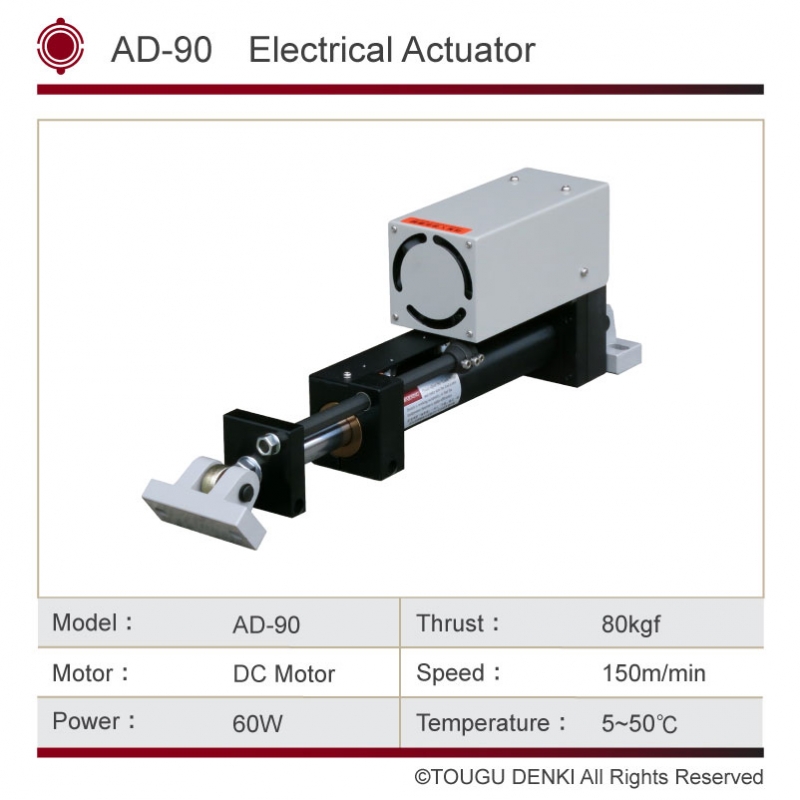

3. Electrical Actuator, thrust 80kgf, load 800kg (COF=0.1), max line speed 150m/min.
4. Adjustable trace speed for the requirements.
5. CE certified, Made in Taiwan. Internal web aligner system has contactless semiconductor control that provides reliability and durability.

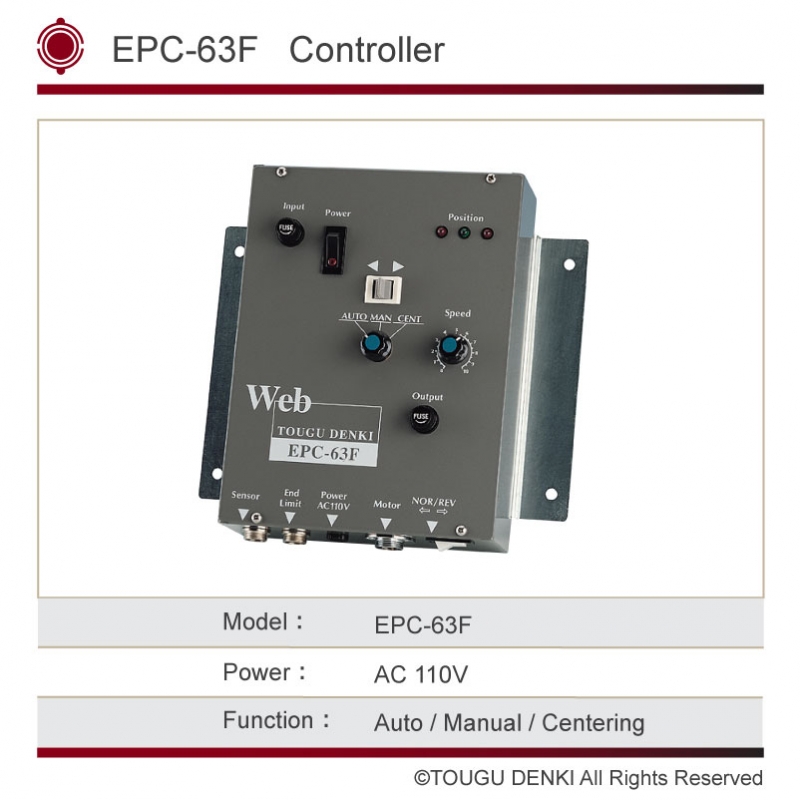

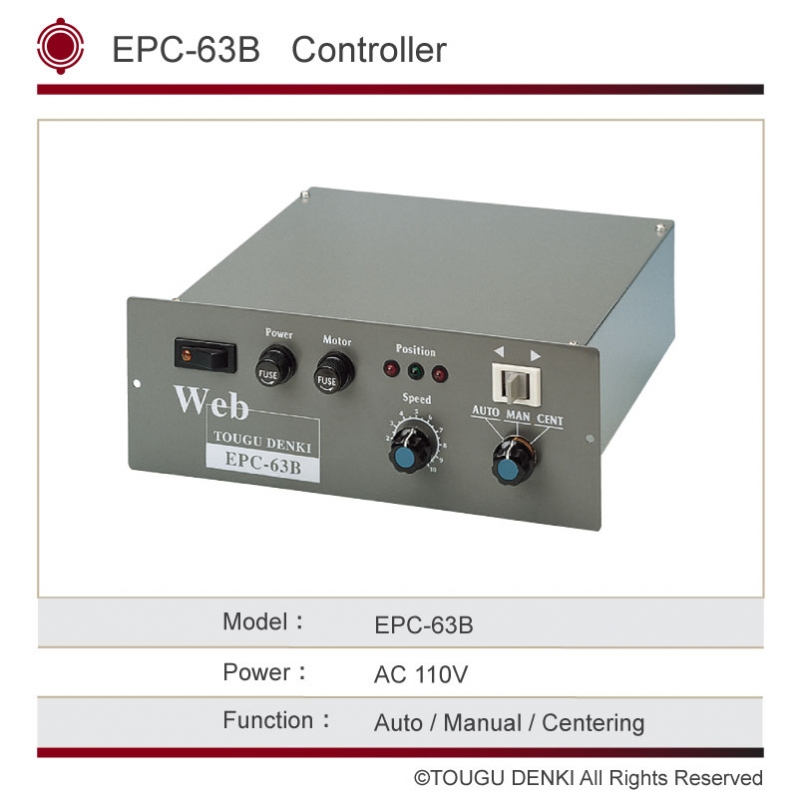

| Model | EPC-63F | EPC-63B | |
| Controller | Wall-mounted | Insertion | |
| Function | Auto / Man / Centering | ||
| Sensor | DT Photoelectric Sensor | ||
| Detect | Edge | ||
| Accuracy | 1mm | ||
| Actuator | AD-90 Electrical | ||
| Speed | 150m/min | ||
| Load (COF=0.1) | 800KG | ||
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
