1. Germany Ultrasonic web guiding sensor, resolution 0.025mm, accuracy 0.1mm, protect class IP65.
2. Suitable for clear film, opaque film, light-sensitive materials, paper, foil…etc, and high dust environments.
3. Servo Electrical Actuator, thrust 350kgf, load 3.5 tons(COF=0.1), max line speed 350m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. CE certified, Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.

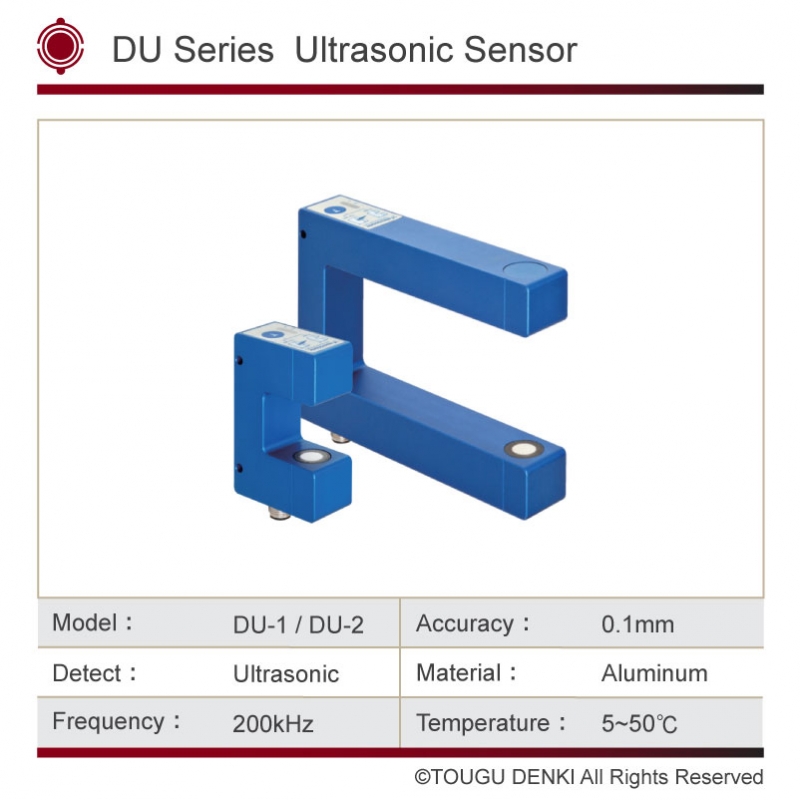

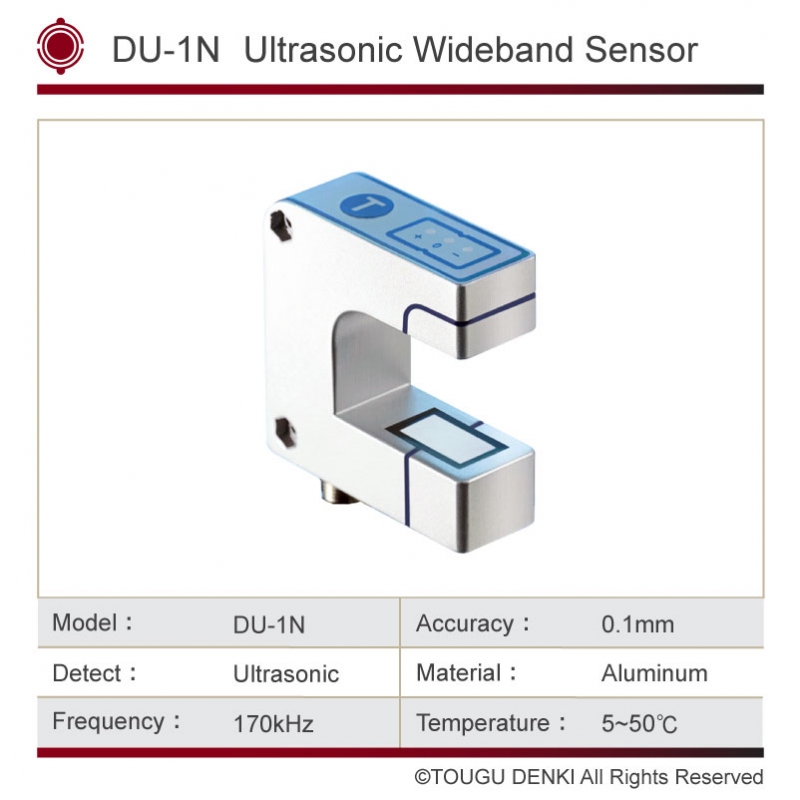

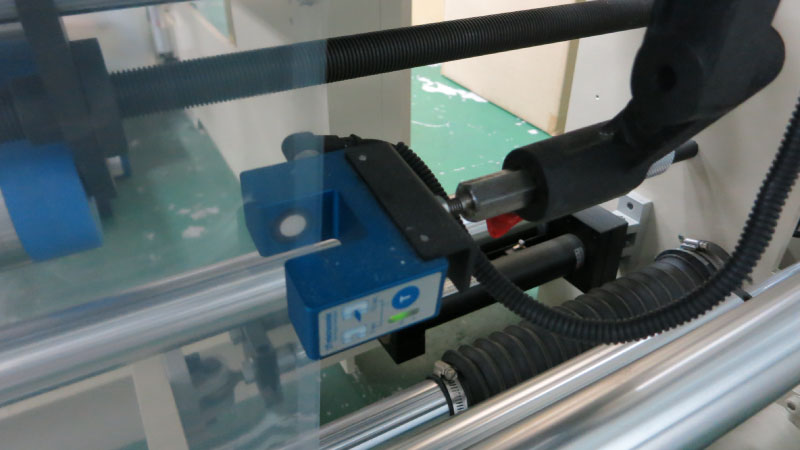

Ultrasonic Web Guiding Sensor

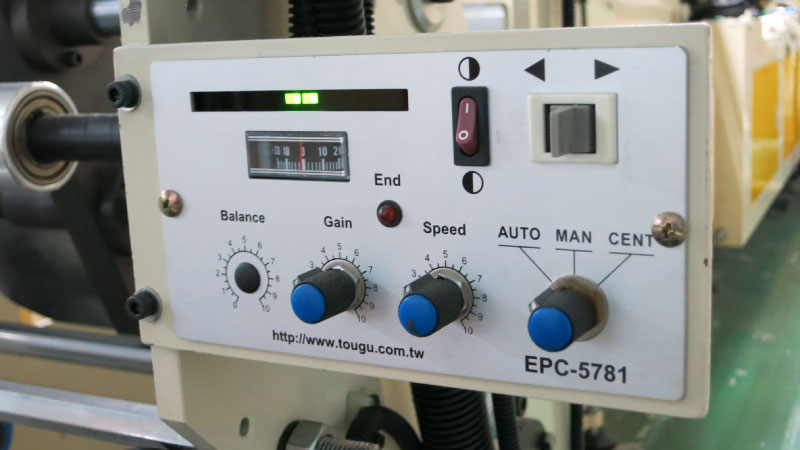

Remote Controller

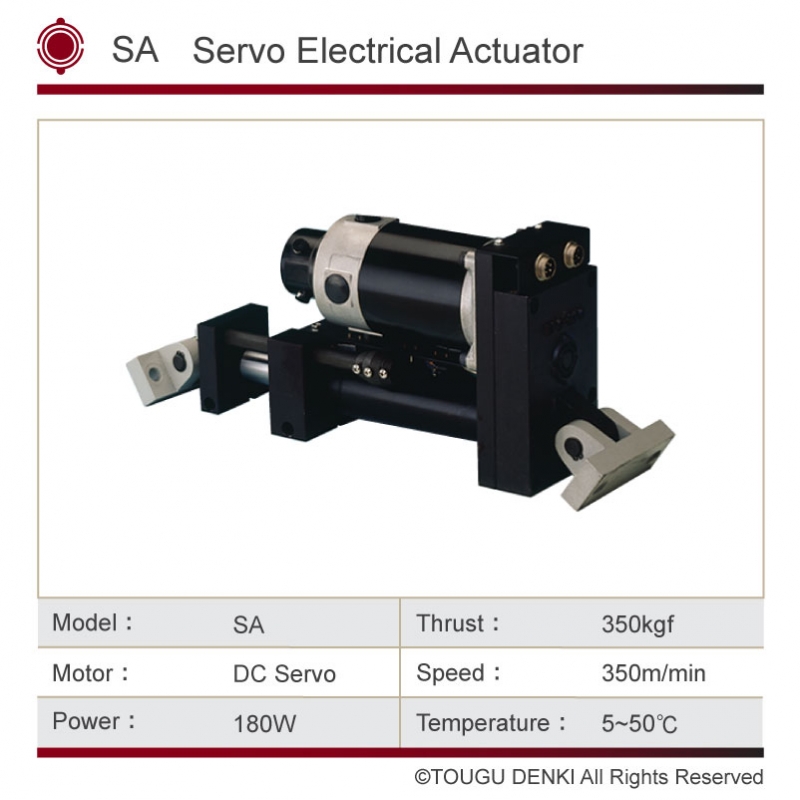

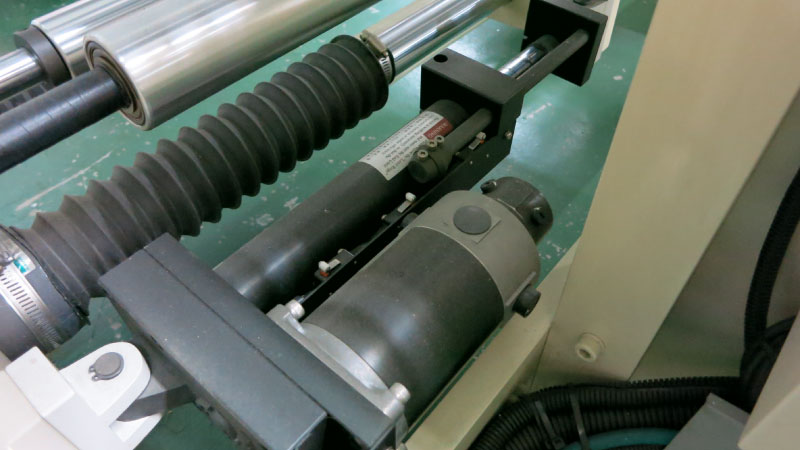

Servo Electrical Actuator

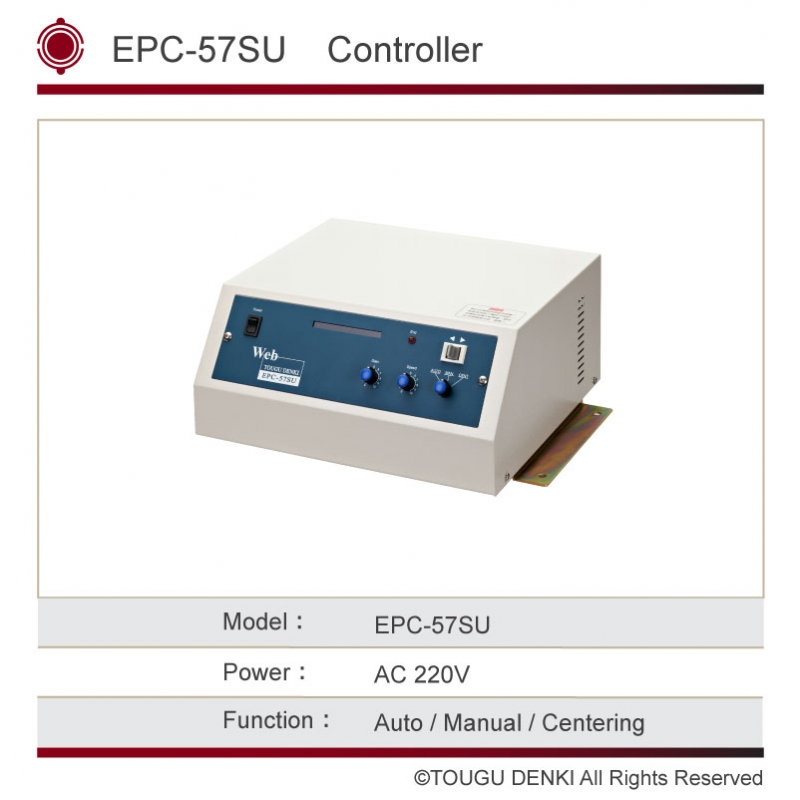

| Model | EPC-57SU | EPC-57SUR | |

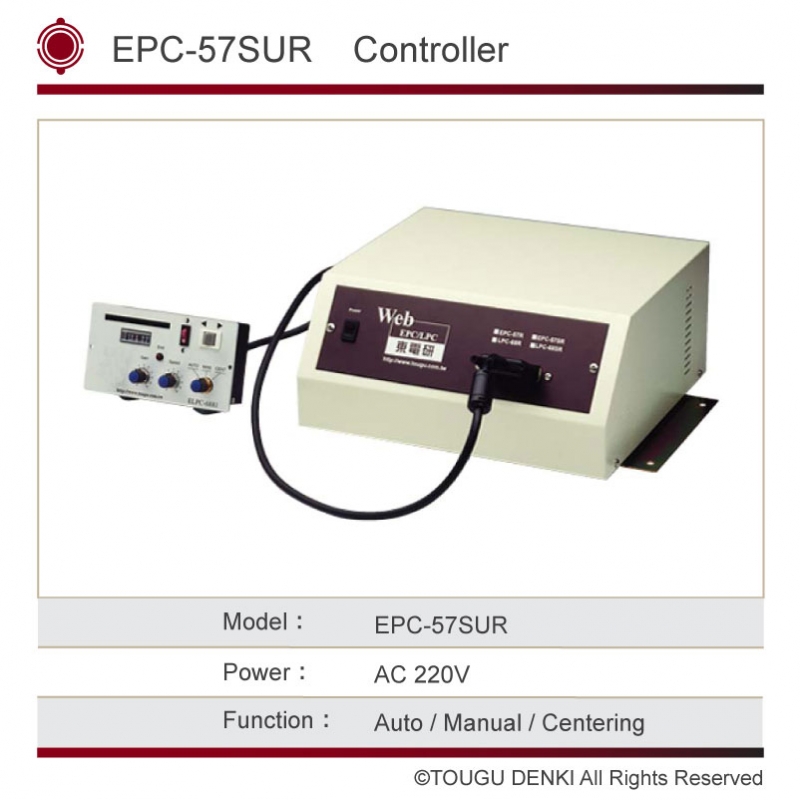

| Controller | Desktop / Wall-mounted | Remote | |
| Function | Auto / Man / Centering | ||
| Sensor | DU Ultrasonic Sensor | ||
| Detect | Edge | ||
| Resolution | 0.025mm | ||
| Accuracy | 0.1mm | ||

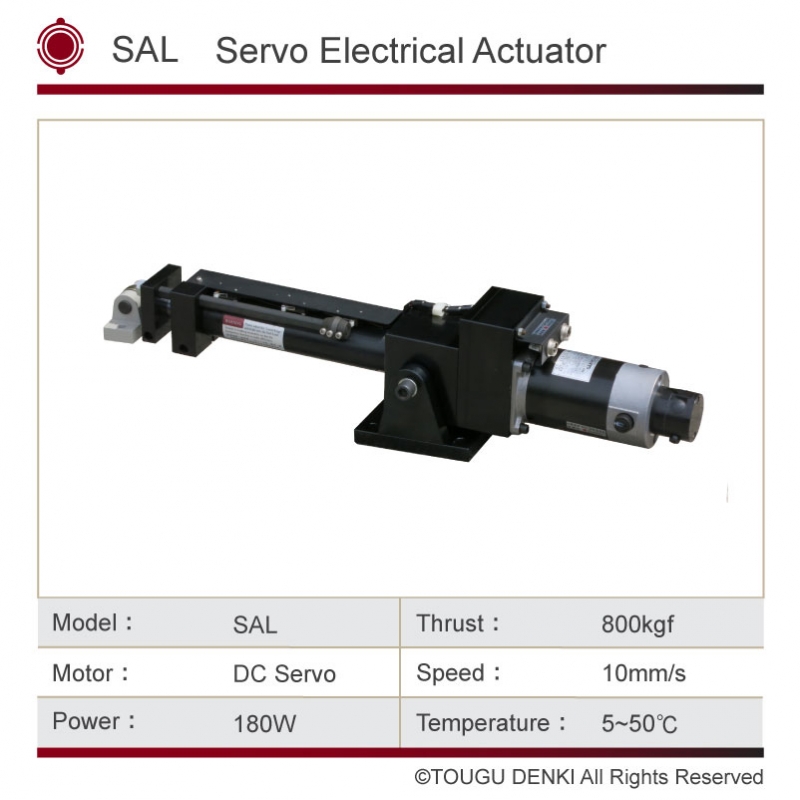

| Actuator | SA Servo Electrical | SAL Servo Electrical | |
| Speed | 350m/min | 100m/min | |
| Load (COF=0.1) | 3500KG | 8000KG | |
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
